Ethernet Extender Over Copper

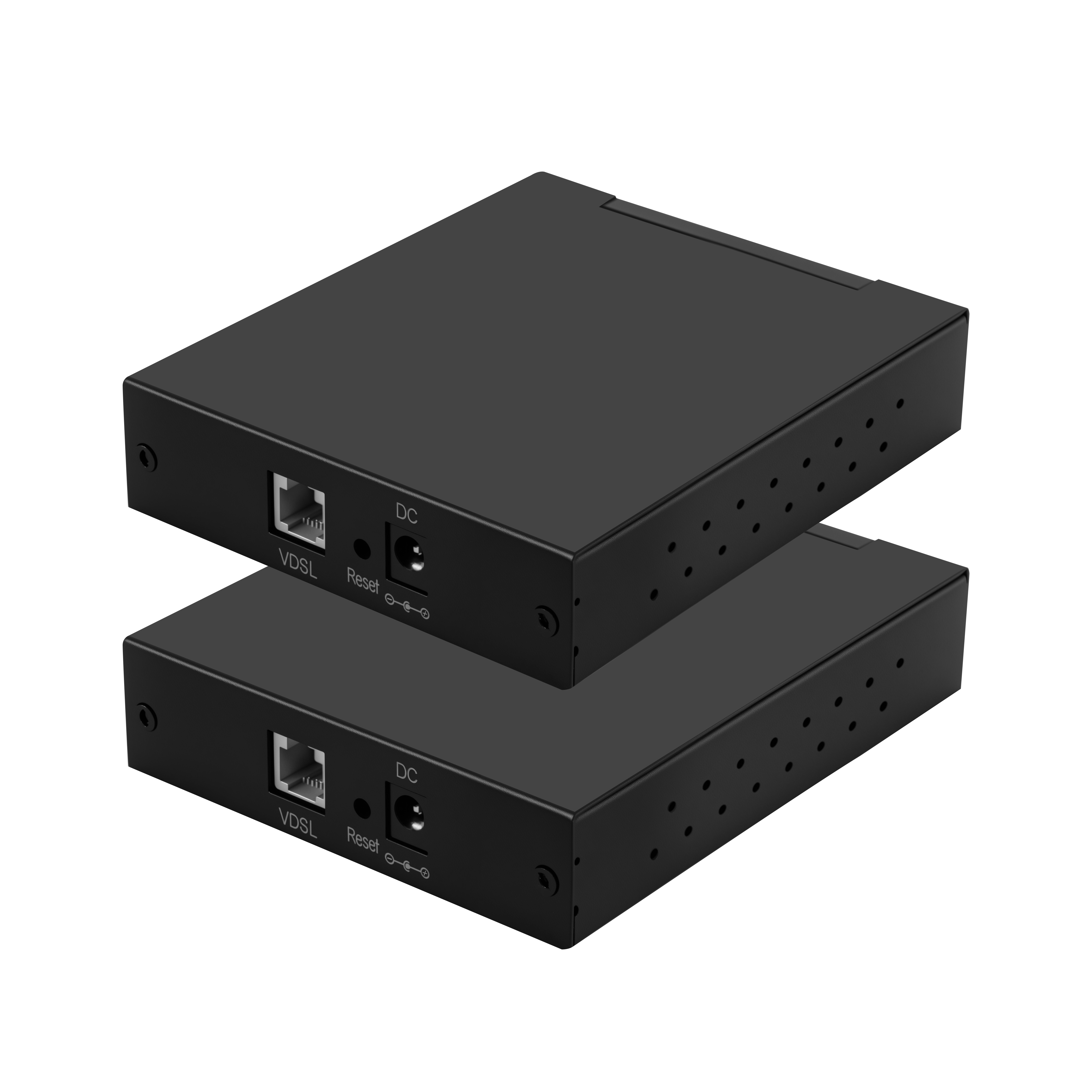

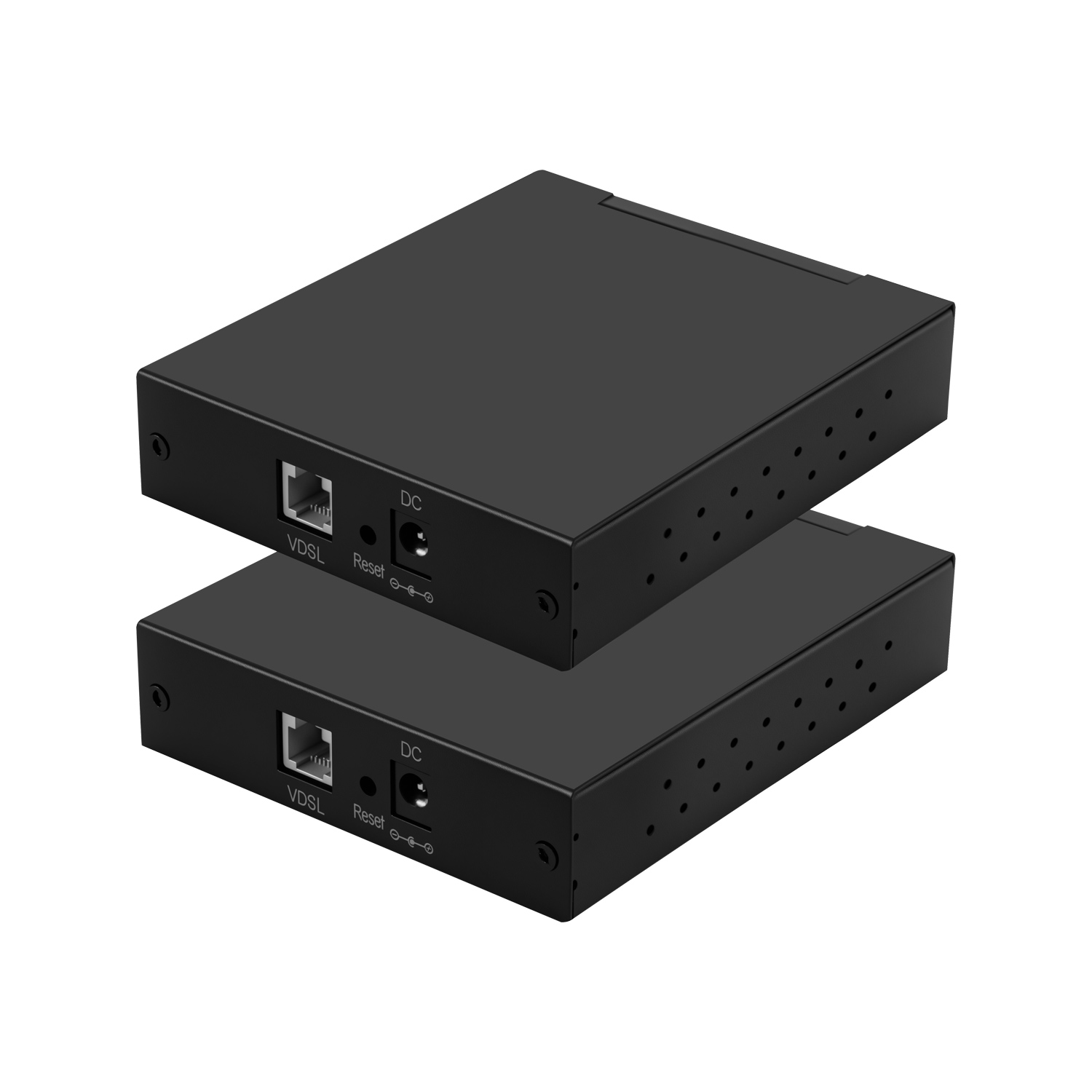

DSL-101T
VDSL2 Ethernet Extender

●Provides CPE and CO two application modes, which are good Ethernet distance extensions as an independent pair.
●Defines symmetric band plan for the transmission of upstream and downstream signals, the band plan performs higher transmission quality in short range for central side (CO) in symmetric mode.
●Gigabit LAN port and maximum transmission rate is 1000Mbps. Voice and data communication can be shared simultaneously based on phone line.
●Plug and play design and easy to set up with no configuration, driver, or software needed.

Model No.	DSL-101T
Description	VDSL2 LAN Ethernet Extender Over Copper 2 Wire
Chipset	Triductor
Transmission Distance&Speed	Upto 3200m: 4441kbps/3005mbps(UL/DL)
Standard	ITU-T G.993.2 VDSL2
Cabling	• Ethernet 　　10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (3Kft) 　　100Base-TX: 2-pair UTP Cat.5, up to 100m (3Kft) • VDSL 　　Twisted-pair telephone wires (AWG24 or better) up to 1km
Interface	• 10/100/1000Base-TX：1 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X • VDSL：1 RJ-11, female Phone Jack
Working Mode	CO/CPE
